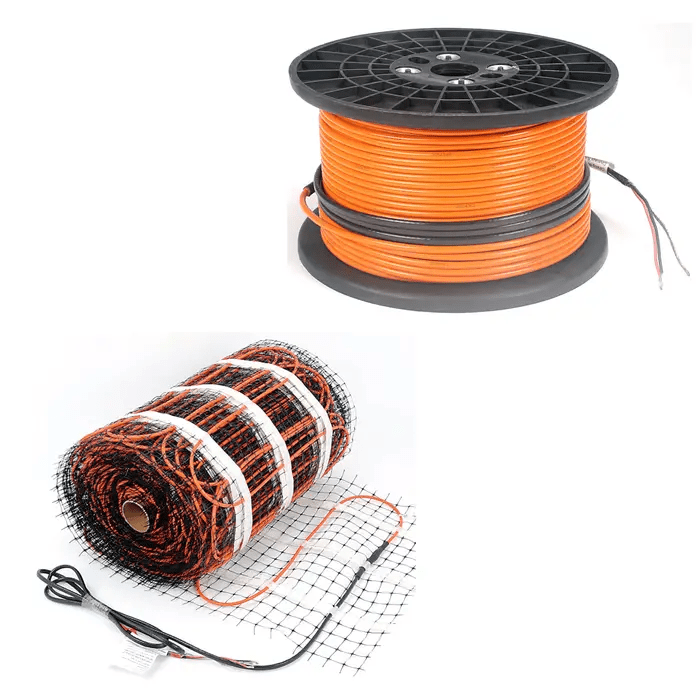

25 sq ft - Concrete Floor Heating on Mesh 240 Volt

Spacing Calculated Every 6 Inches

Specifically designed to be buried in the concrete slab, the 6-watt cable or mat ensures consistent comfort and, when integrated into a construction from the very beginning, can generate significant savings.

• Includes a floor sensor
• Designed specifically for burial in concrete
• Compatible with most floor coverings
• Simple and easy installation
• Brightly colored product for easy installation on the construction site
• Energy saving
• EMC-free
• Designed for installation in wet environments
• 25-year limited warranty years

Standard voltages: 240 V

Powers:

Thermostat Connection:Single connection point (no return to thermostat)

Cable not included Heater: 3 m (10 ft) 2-conductor and bsp ground; Maximum Exposure Temperature: (continuous and storage) 90°C (194°F) Maximum Installation Temperature: 10°C (50°F) Maximum Heater Current: 11 A Maximum >Maximum Circuit Load: 16 A

Maximum Circuit Protection: 20 A Circuit Breaker

Approvals:ULC Listed in North America, CSA Listed in Canada: Supplemental or Primary Heating. Approved for Showers, Dry and Wet Environments.

Warranty: 25 Years
