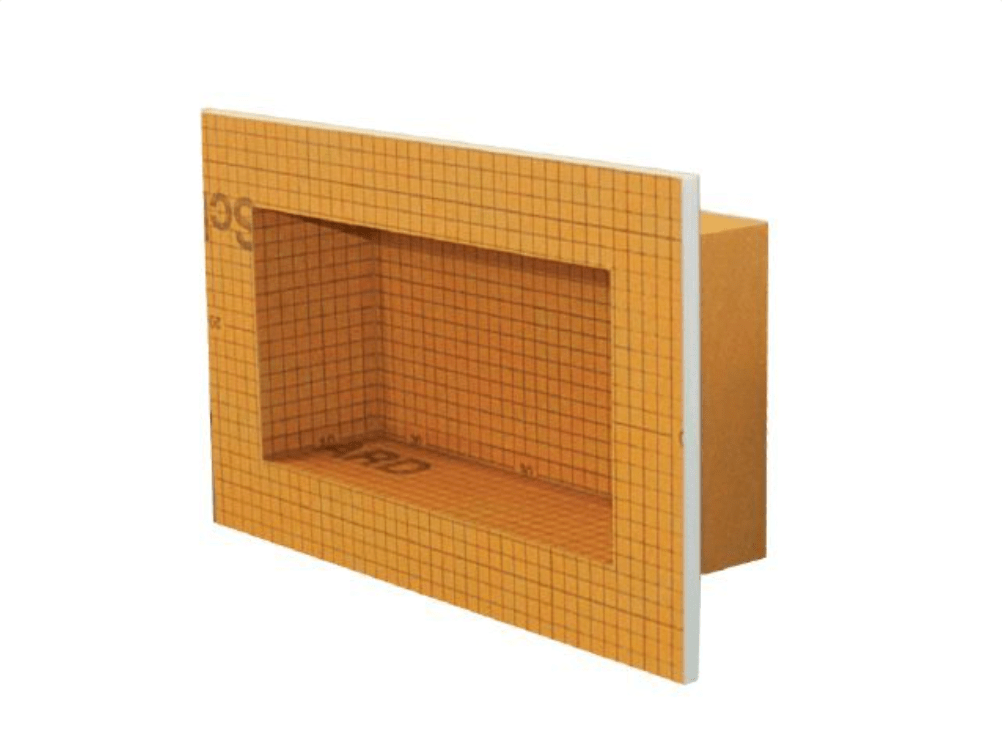

12" x 6" - Schluter KERDI-BOARD-SN Prefabricated Framed Shower Niche

Schluter-KERDI-BOARD-SN is a prefabricated shower niche that is completely sealed, quick to install, and integrates with KERDI and KERDI-BOARD shower assemblies. All niche sizes include a waterproof KERDI-BAND frame to seal the joints, as well as screws and washers to secure the KERDI-BOARD-SN to the stud framing. Schluter-KERDI-BOARD-SN is a prefabricated shower niche, made of KERDI-BOARD panels, that can be installed in both KERDI and KERDI-BOARD wall assemblies. The shower niche features an integrated 1/2" (12.5 mm) thick by 2" (50 mm) wide bonding flange and is available in sizes 12" x 6" (30 x 15 cm), 12" x 12" (30 x 30 cm), 12" x 20" (30 x 51 cm), and 12" x 28" (30 x 71 cm).

• Completely waterproof and vapor-resistant
• Features waterproof inside corners for effective sealing
• The niche can be finished with Schluter profiles
• This kit includes: 1 KERDI-BAND frame and 8 screws and washers

Specifications

Manufacturer	Schluter
Approved for the shower	Yes
Guarantee	KERDI-BOARD 10-year limited warranty
Guarantee (years)	10
Height (mm)	152
Height (in.)	6
Height (inch in fraction)	6
Included	This kit includes: 1 KERDI-BAND frame and 8 screws and washers
Propagation indicator flame	ASTM E84: Passed | CAN/ULC S102.2: Passed
Width (mm)	305
Width (in.)	12
Width (inch in fraction)	12
Manufacture quantity per package	1
Material	Polystyrene foam extruded
Collection name	KERDI-BOARD-SN
ASTM Standard	C518: R 9.1 – 2" (50 mm) / R 2.2 – 1/2" (12.5 mm) / R 0.9 – 3/16" (5 mm)
Vapor barrier	Yes
Beach	Temperature register: -58°F to 158°F (-50°C to 70°C)
Quantity per box	1
Permeability rate (ASTM E96)	0.36 perms - 1/2" (12.5 mm)
Outdoor use	No
Indoor use	Yes
