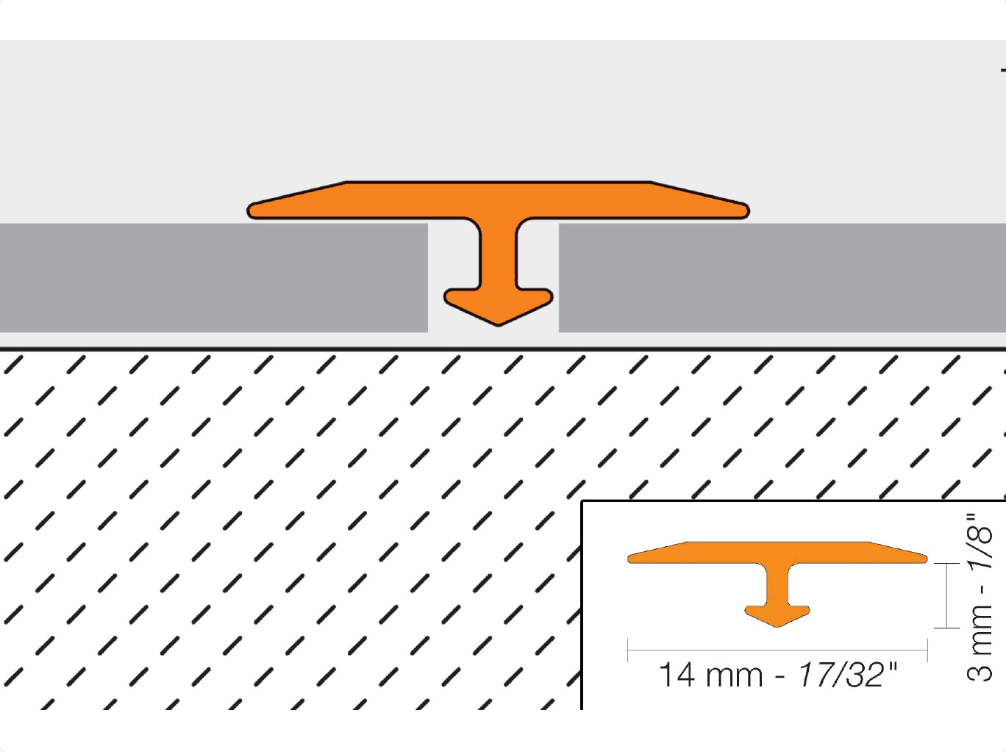

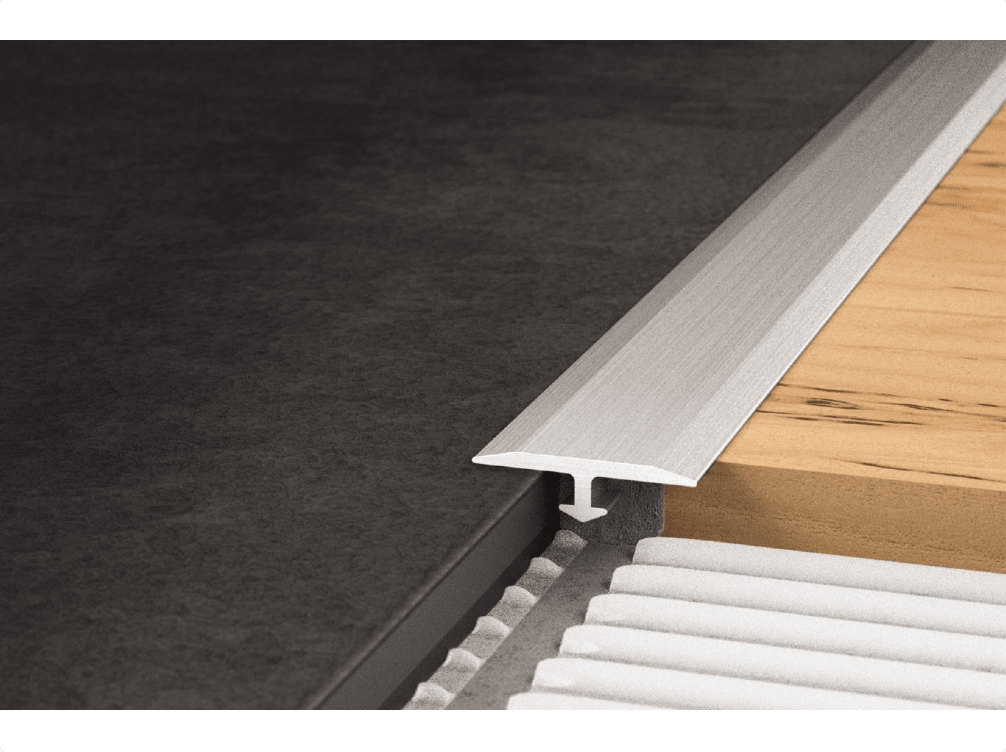

Schluter-VINPRO-T is designed to provide transitions between existing resilient floor coverings of the same height, in new applications and renovations (e.g. LVT). VINPRO-T is installed inside the joint cavity and covers the adjacent surface materials, thereby preventing the edges from being damaged when subjected to mechanical stress.
Now available in 25 mm (1")
Prevents resilient surface coverings from chipping
Ideal for installations where the tile is bordered by wood, laminate or other hard floor coverings
Designed for floor transitions in renovation applications
Available in anodized aluminum in three finish colors
Specifications
Manufacturer
Schluter
Color
Brown
Manufacturer color
Antique bronze
Metal color
Antique bronze
Finish
Brushed
Warranty
VINPRO - 5-year limited warranty
Warranty (years)
5
Height (cm)
0.3
Height (mm)
3
Height (in.)
0.13
Height (inch as fraction)
1/8
Width (cm)
2.5
Width (mm)
25
Width (in.)
1
Width (inch as fraction)
1
Width of the exposed surface of the trim (mm)
25
Width of the exposed surface of the trim (in.)
1
Width of the exposed surface of the trim (inch as fraction)
1
Length (cm)
250
Length (m)
2.5
Length (mm)
2500
Length (ft)
8.21
Length (in.)
98.5
Length (inch as fraction)
98-1/2
Material
Anodized aluminum
Collection name
VINPRO-T
Color number
ABGB
Weight (kg)
0.24
Weight (lb)
0.53
Profile
Transition profile
Trim transition type
T-shaped trims for the renovation of resilient floor coverings
Outdoor use
No
Indoor use
Yes
Use for
Prevents resilient surface coverings from chipping | Ideal for installations where the tile is bordered by wood, laminate or other hard floor coverings | Designed for floor transitions in renovation applications
Use on
Floor
Floor thickness for the trim (mm)
3
Floor thickness for the trim (in.)
0.13
Floor thickness for the trim as fraction (inch as fraction)
1/8
Product Specs
Product lineVINPRO-T
ManufacturerSchluter
ColorBrown
Manufacturer colorAntique bronze
Metal colorAntique bronze
FinishBrushed
WarrantyVINPRO - 5-year limited warranty
Warranty (years)5
Height (cm)0.3
Height (mm)3
Height (in.)0.13
Height (inch as fraction)1/8
Width (cm)2.5
Width (mm)25
Width (in.)1
Width (inch as fraction)1
Width of the exposed surface of the trim (mm)25
Width of the exposed surface of the trim (in.)1
Width of the exposed surface of the trim (inch as fraction)1
Length (cm)250
Length (m)2.5
Length (mm)2500
Length (ft)8.21
Length (in.)98.5
Length (inch as fraction)98-1/2
MaterialAnodized aluminum
Collection nameVINPRO-T
Color numberABGB
Weight (kg)0.24
Weight (lb)0.53
ProfileTransition profile
Trim transition typeT-shaped trims for the renovation of resilient floor coverings
Outdoor useNo
Indoor useYes
Use forPrevents resilient surface coverings from chipping | Ideal for installations where the tile is bordered by wood, laminate or other hard floor coverings | Designed for floor transitions in renovation applications
Use onFloor
Floor thickness for the trim (mm)3
Floor thickness for the trim (in.)0.13
Floor thickness for the trim as fraction (inch as fraction)1/8
