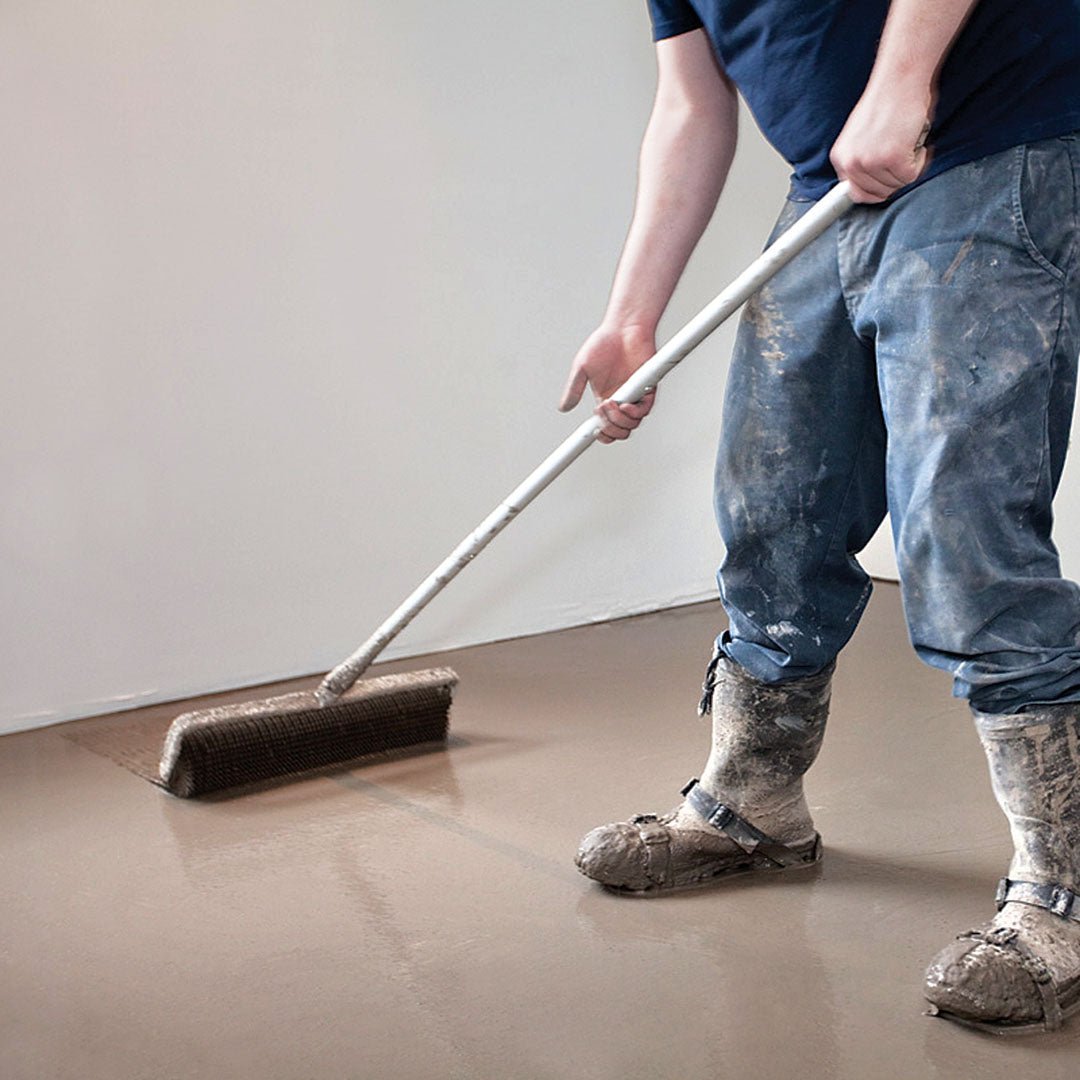

Novoplan® 2 Plus is a high-strength, fast-drying, cement-based self-leveling underlayment for interior concrete floors and engineer-approved substrates.
What sets it apart from an ordinary underlayment is its single-lift range: 1/8" to 2". A badly out-of-plane floor is corrected in one operation, with no successive lifts and no waiting between them.
Tile can go down after 24 hours, and light foot traffic is allowed after 2 to 3 hours. Compressive strength above 4,200 psi at 28 days, and zero VOC.
- 1/8" to 2" in a single lift
- Ready for tile after 24 hours
- Light foot traffic after 2 to 3 hours
- Compressive strength > 4,200 psi at 28 days
- VOC content: 0 g/L
- Meets ASTM F710 and ASTM F2873
- SCS-IAQ-06041 certified
- Works over radiant-heated floors — can encapsulate hydronic or electric systems
- Flow time up to 15 minutes
- Self-curing — no curing compound required
⚠️ Primer is mandatory
Novoplan 2 Plus never goes over an unprimed surface. Mapei Primer T is the all-purpose primer for self-leveling underlayments; over a non-porous or difficult substrate, ECO Prim Grip promotes adhesion. See the full range of primers.
Only Mapeheat and Mapeguard UM uncoupling membranes require no primer.
⚠️ What the product does not do
- It is not a moisture barrier. A cement-based underlayment does not reduce vapour transmission from a damp slab. Moisture mitigation must be done first.
- It is not a wear surface. Cured material must be covered with a finished floor system.
- Interior only. No exterior applications.
- Do not install over asbestos, adhesive residue, standing water, or dimensionally unstable substrates.
Suitable substrates
Concrete meeting ASTM F710 and at least 28 days old · well-bonded ceramic, porcelain or quarry tile · natural stone · vinyl composition tile · cement backer units · fully cured cement-based mortar beds · engineer-approved plywood or OSB with joists at 19.2" on centre maximum and deflection within L/360 · nailed-down wood flooring covered with at least one layer of 5/8" plywood, glued and screwed · gypsum-based underlayments.
Coverage per 22.7 kg (50 lb) bag
| 1/4" (6 mm) | 24 sq ft (2.23 m²) |
| 1/2" (12 mm) | 12 sq ft (1.11 m²) |
| 3/4" (19 mm) | 9 sq ft (0.84 m²) |
| 1" (2.5 cm) | 6 sq ft (0.56 m²) |
| 2" (5 cm) | 3 sq ft (0.28 m²) |
Mixing
4.73 to 5.0 L of clean water per 22.7 kg bag. Pour the powder into the pre-measured water and mix 2 to 3 minutes with a high-speed drill and oval paddle. Do not overmix: trapped air causes pinholing at the surface.
Specifications
| Brand | Mapei |
| Range | Novoplan |
| Size | 22.7 kg (50 lb) bag |
| Colour | Gray |
| Single-lift thickness | 1/8" to 2" (3 mm to 5 cm) |
| Minimum thickness at high point | 1/8" (3 mm) |
| Compressive strength | > 2,700 psi at 7 days · > 4,200 psi at 28 days |
| Flexural strength | > 1,050 psi at 28 days |
| Pull-out strength | > 500 psi at 28 days |
| Cured density | 128 lb/cu ft (2.06 kg/L) |
| VOC content | 0 g/L |
| pH of wet mixture | 11 |
| Application temperature | 10 °C to 29 °C |
| Flow time | Up to 15 minutes |
| Drying — non-moisture-sensitive coverings | 24 hours at 1" thickness |
| Drying — moisture-sensitive coverings | 2 to 3 days at 1" thickness |
| Shelf life | 1 year, unopened bag |
| CSI classification | Cast Underlayment 03 54 00 |
| Reference | 1785156 |
Once the underlayment is dry, see the thin-set mortars for setting the tile.
