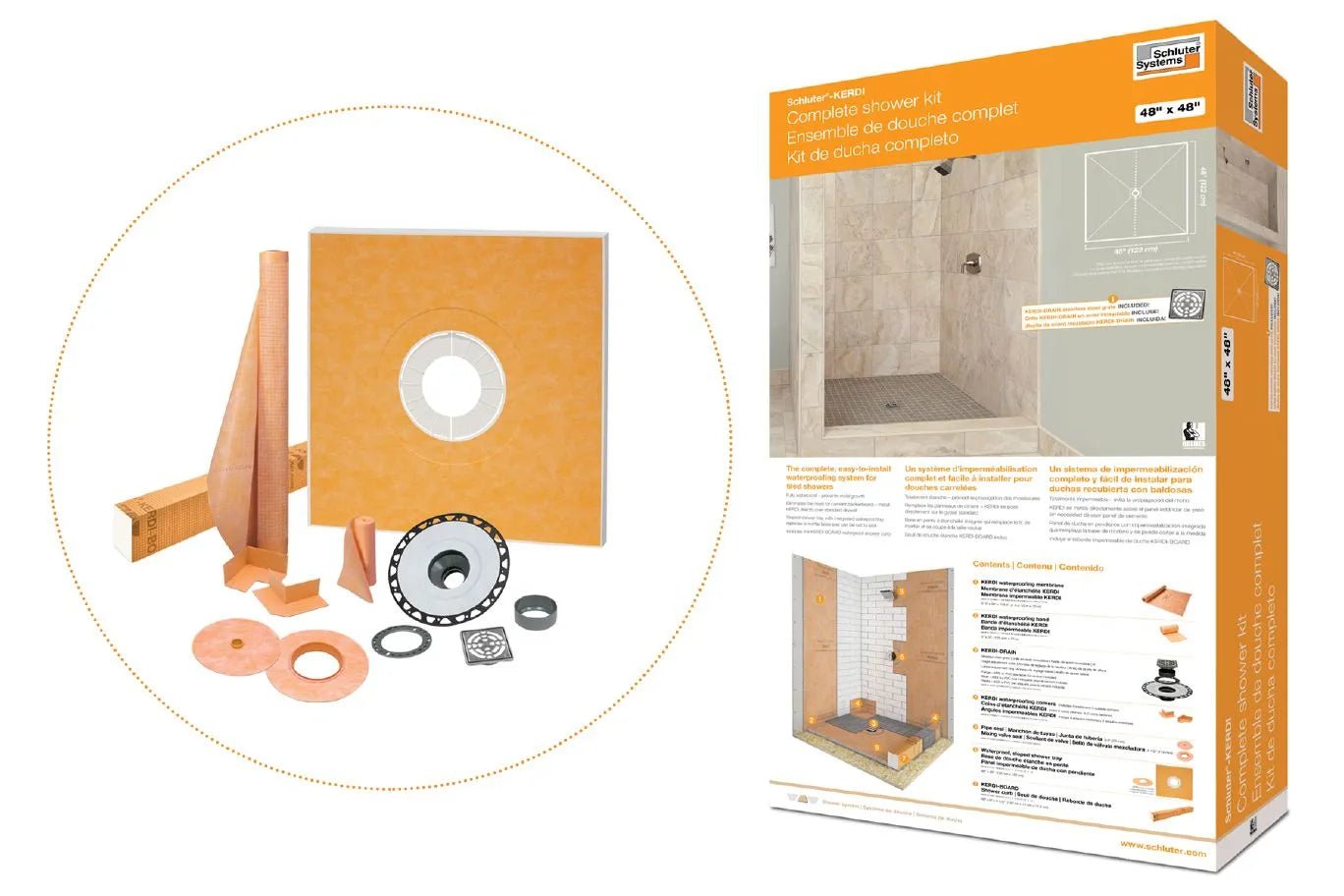

The Schluter-KERDI-SHOWER-KIT is an all-inclusive set containing each of the components required to create a watertight shower assembly. This set includes: 1 KERDI-SHOWER-T/-TS/-TT shower base 48" x 48". 1 KERDI-BOARD-SC shower curb 48" x 6" x 4-1/2". 1 roll of KERDI waterproofing membrane 3' 3" x 33' = 108 sq ft 1 roll of KERDI-BAND waterproofing strip 5" x 33 1 PVC KERDI-DRAIN flange with 2" outlet and 4" stainless steel grate (E) 4 preformed inside and 2 outside KERDI-KERECK sealing corners 1 KERDI-SEAL-PS 3/4" pipe seal 1 KERDI-SEAL-MV 4-1/2" mixing valve seal. 1 KERDI collar.
Designed to create a fully watertight and vapor-tight enclosure in residential tiled showers and steam showers
Also includes the KERDI-DRAIN system with integrated bonding flange and stainless steel grate
Includes a shower base and curb, a membrane, and waterproofing strips
Specifications
Manufacturer
Schluter
Product type
Shower kit
Approved for shower use
Yes
Drain diameter
2
Warranty
Shower system - 10-year limited warranty
Warranty (years)
10
Included with the set
1 KERDI-SHOWER-T/-TS/-TT shower base 48" x 48", 1 KERDI-BOARD-SC shower curb 48" x 6" x 4-1/2", 1 roll of KERDI waterproofing membrane 3' 3" x 33' = 108 sq ft, 1 roll of KERDI-BAND waterproofing strip 5" x 33', 1 PVC KERDI-DRAIN flange with 2" outlet and 4" stainless steel grate (E), 4 preformed inside and 2 outside KERDI-KERECK sealing corners, 1 KERDI-SEAL-PS 3/4" pipe seal, 1 KERDI-SEAL-MV 4-1/2" mixing valve seal and 1 KERDI collar
Width (in.)
48
Width (inch fraction)
48
Drain location
Center
Length (in.)
48
Length (inch fraction)
48
Material
Polyethylene
Collection name
KERDI-SHOWER-KIT
Water resistance
Yes
Shower drain type
Standard center drains
Indoor use
Yes
Use for
Stone and Ceramic
Product Specs
Product lineKERDI-SHOWER-KIT
ManufacturerSchluter
Product typeShower kit
Approved for shower useYes
Drain diameter2
WarrantyShower system - 10-year limited warranty
Warranty (years)10
Included with the set1 KERDI-SHOWER-T/-TS/-TT shower base 48" x 48", 1 KERDI-BOARD-SC shower curb 48" x 6" x 4-1/2", 1 roll of KERDI waterproofing membrane 3' 3" x 33' = 108 sq ft, 1 roll of KERDI-BAND waterproofing strip 5" x 33', 1 PVC KERDI-DRAIN flange with 2" outlet and 4" stainless steel grate (E), 4 preformed inside and 2 outside KERDI-KERECK sealing corners, 1 KERDI-SEAL-PS 3/4" pipe seal, 1 KERDI-SEAL-MV 4-1/2" mixing valve seal and 1 KERDI collar
