Schluter - KERDI-LINE-VARIO - Recessed linear drain with Square grate design - brushed stainless steel (V4) 1-11/16" x 96"

The Schluter®-KERDI-LINE-VARIO is a variable-length linear shower channel. This 96 in. set is cut to size on site, covering most shower widths from a single reference. End caps are included for trimmed lengths.

Features

• 244 cm (96 in.) length, trimmed on site down to a minimum of 25.4 cm (10 in.)
• Slim profile, 43 mm (1-11/16 in.) wide by 10 mm (3/8 in.) high

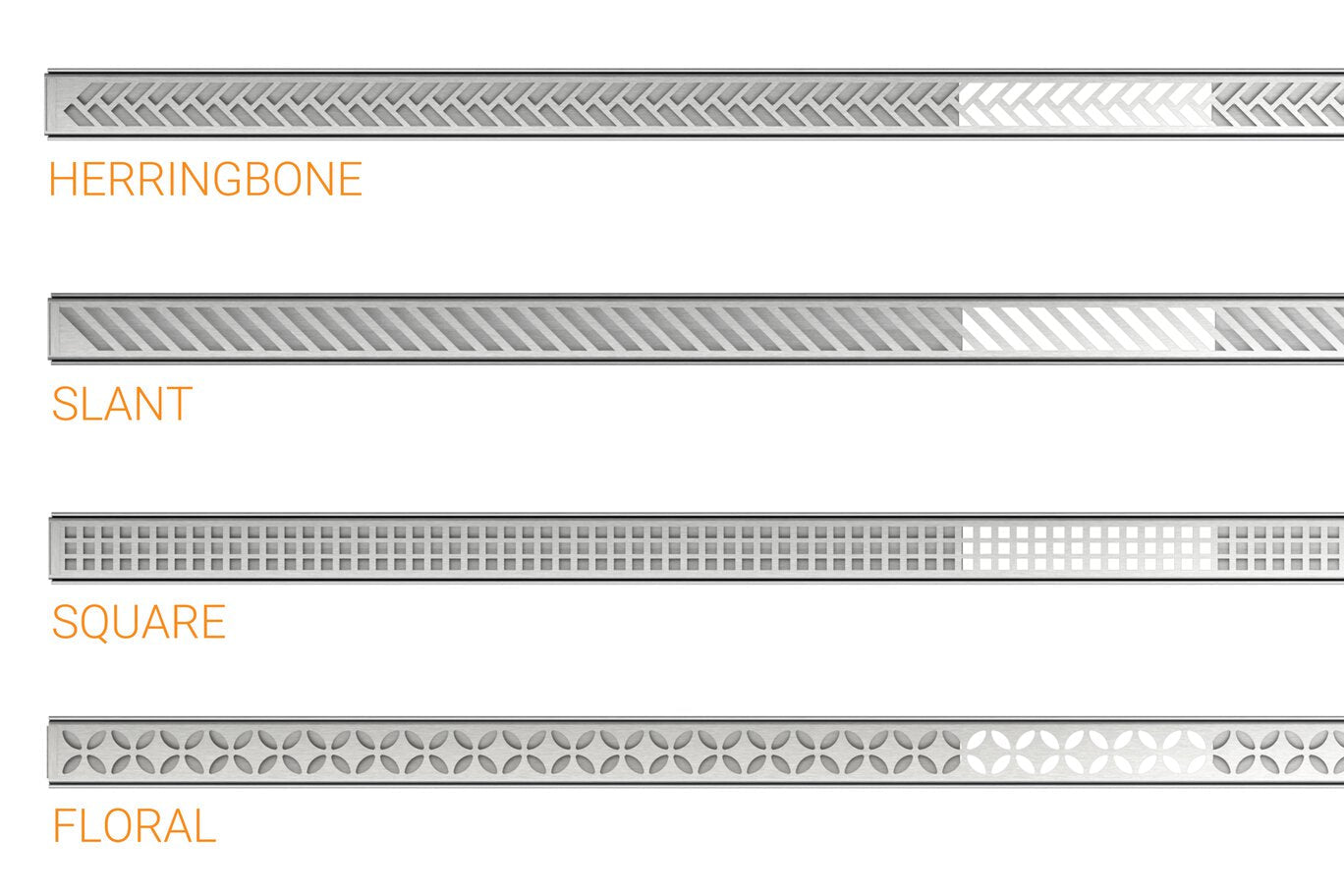

• Square grate design, recessed and tileable for a flush finish
• Brushed stainless steel (V4)
• The flange outlet can be positioned anywhere along the trimmed length, to clear a joist

Order it with

This set does not include the flange. The KERDI-LINE-VARIO flange kit (KLVR2FLK) is required to complete the installation. It includes the polypropylene drain body with a 2 in. outlet, the integrated KERDI collar, and PVC and ABS couplings.

Before you install

• Minimum recommended tile thickness: 10 mm (3/8 in.)
• Designed for Schluter bonded waterproofing shower assemblies, with the floor sloped on a single plane
