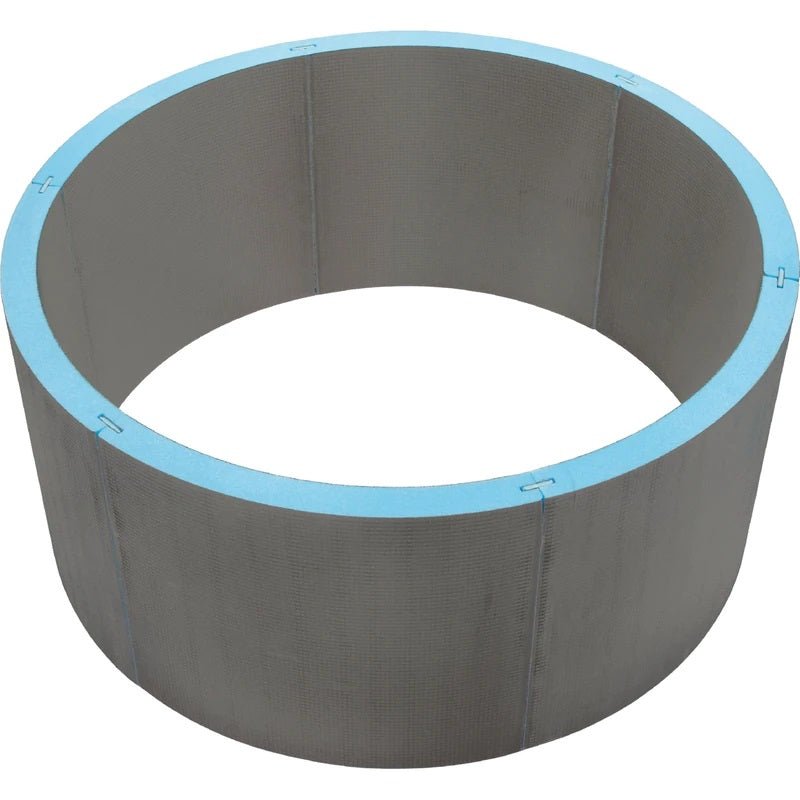

Wedi - Fundo Trollo extension round shower panel 43-1/3" x 43-1/3" x 19-2/3"

The Fundo Trollo shower element, with its rounded shape and generous diameter of approximately one meter, gives the bathroom a decidedly modern design. Tileable shower trays are not only extremely practical and reliable, but also open up entirely new design possibilities for wet rooms and bathrooms. To ensure impact sound insulation, appropriate insulation must be provided under the wedi Fundo shower tray, as well as the installation of insulation strips around its edges: use Nonstep Plan impact sound insulation (6 mm thick rubber granulate mat, ΔL W,R = 14 dB according to DIN 52210). Alternatively, approved polyethylene films can be used. The permissible sound pressure level ≤ 30 dB(A) according to DIN 4109 LIn and ≤ 25 dB(A) according to VDI 4100 SSt III, which is caused by water installations, is met by wedi Fundo and Nonstep Plan. .

• Safety guaranteed by a perfectly even, predefined slope
• The entire system is 100% waterproof
• Simple and reliable installation - field-tested
