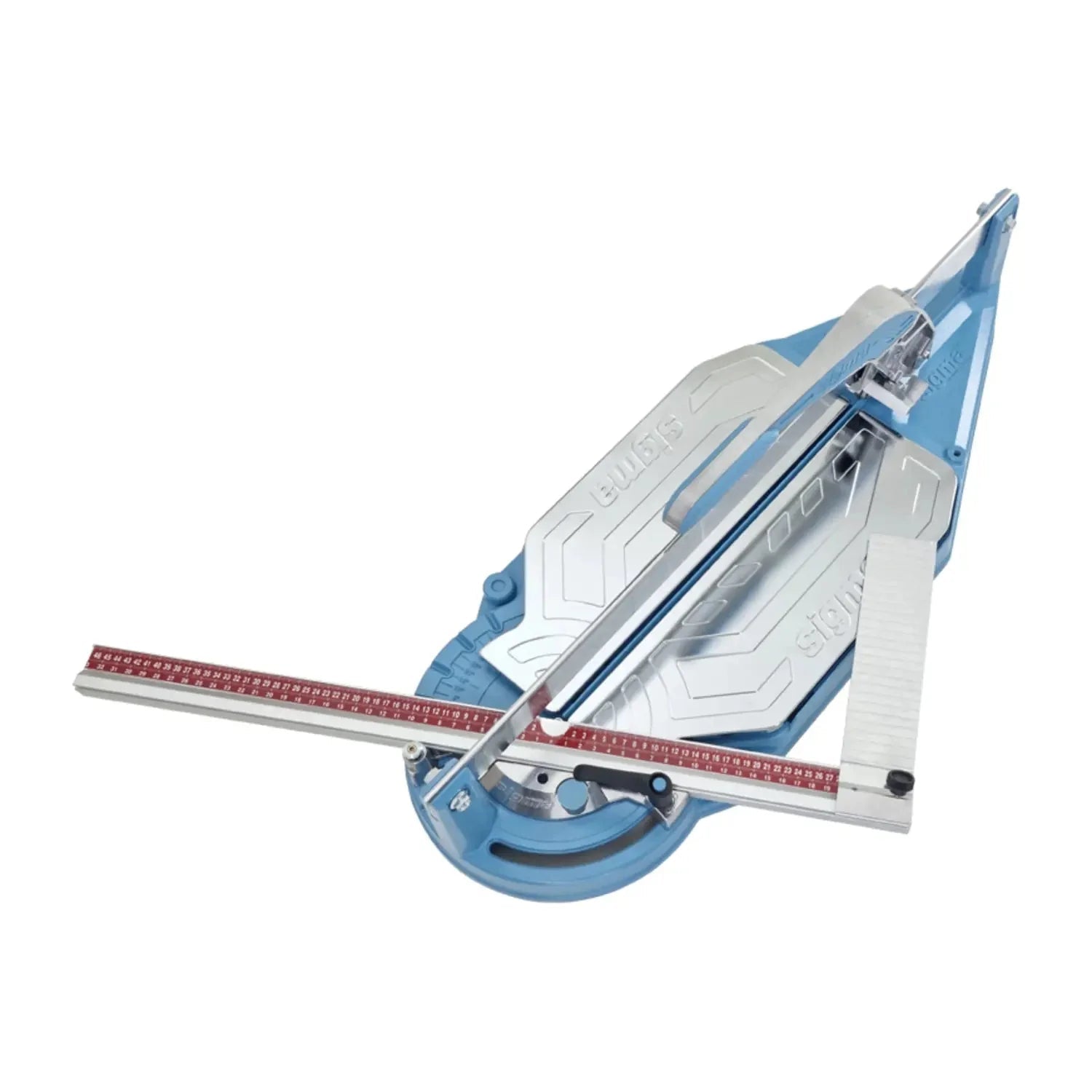

Push or pull tile cutter: what's the difference?
In short: a push tile cutter scores as you move the handle away from you. Sigma describes it as easy and deep, with maximum scoring power. That is the advantage for thick porcelain and textured tiles. A pull tile cutter scores as you bring the handle towards you: Sigma describes it as practical and fast. At Sigma, the Series 4 Nex and the Series 3 Max score by pushing. The Series 4 Up, the Series 3 and the Tecnica score by pulling.
What Sigma says about each system
Sigma sums up the difference in one line for each series. Push scoring delivers "maximum scoring power". Pull scoring is "practical and fast". Both Series 4 families share the same frame, cast in a single piece of aluminium. They also share the same carriage on 3 double-row ball bearings and the same measuring bar pivoting from +45° to −45°. What changes is the handle, the wheel and the breaking force.
| Series 4 Nex (push) | Series 4 Up (pull) | |
|---|---|---|
| Scoring wheel | 16 mm (14N, or 14NT titanium) | 12 mm (14U, or 14UT titanium), always visible |
| Tile thickness | 0 to 19 mm (3/4 in) | 0 to 17 mm (11/16 in) |
| Breaking force | 1,200 kg | 1,050 kg |
| Breaker foot | 120 mm wide, pivots when the handle is lifted | 100 mm wide |
| Damping | Double suspension for textured tiles | Ergonomic handle designed for pulling |
| Available lengths | 62, 76, 95, 125 and 155 cm | 70, 84 and 103 cm |
Source: official Sigma catalogue and sigmaitalia.com.
When to choose a push tile cutter
- Thick porcelain. Sigma presents push scoring as the one that delivers maximum scoring power. The Nex cuts up to 19 mm, against 17 mm for the Up, with 1,200 kg of breaking force.
- Textured or structured tiles. The Nex's double suspension absorbs the relief. The Series 3 Max even uses a 19 mm wheel for these surfaces.
- Large formats. The 125 and 155 cm lengths only exist in the Nex.
When to choose a pull tile cutter
- Fast, repetitive cuts. Pulling is a natural, quick motion. Sigma calls it "easy and fast" scoring.
- Tight spaces (our advice). When there is no room to push, as in a bathroom or a hallway, pulling is handier. The more compact 4BU (70 cm) suits this kind of job well.
- Visibility. On the Series 4 Up, the 12 mm wheel stays visible during the score.
- Small and medium formats. The lighter Tecnica 2G and 2B3 and the Standard 7F all score by pulling.
Our recommendation
For a tile setter who mostly installs large-format porcelain, the Series 4 Nex 95 cm (4DN) or 125 cm (4EN) is a safe investment. They are our two best-selling tile cutters. If you prefer pulling, or often work in narrow rooms, the Series 4 Up 84 cm (4CU) offers the same structure. For details on each model, see our Sigma tile cutter buying guide.
Frequently asked questions
Does a push tile cutter cut better than a pull tile cutter?
Not necessarily better, but with more force. In the Series 4, the push version (Nex) applies 1,200 kg of breaking force, against 1,050 kg for the pull version (Up). It also cuts up to 19 mm, against 17 mm.
Why does the Series 3 Max have a larger wheel?
The Series 3 Max scores by pushing with a 19 mm wheel (14MX). According to Sigma, this large diameter is designed for textured tiles. Its 100 mm breaker foot applies 1,200 kg.
Which scoring wheel does a Sigma tile cutter use?
16 mm (14N or 14NT titanium) for the Series 4 Nex. 12 mm (14U or 14UT titanium) for the Series 4 Up. 12 mm (14A or 14T titanium) for the Tecnica, Standard and Series 3. 19 mm (14MX) for the Series 3 Max.
Does the laser kit work on both versions?
Yes. The 022V laser kit fits the whole Series 4, Nex and Up.
Buy Sigma at Ceramed
Ceramed, a proudly Québec company based in Saint-Mathieu-de-Beloeil, stocks a wide selection of Sigma products, including scoring wheels and spare parts. We ship across Canada and offer more than 90 free pickup locations. Professionals get special pricing with Ceramed Pro.
Sources: official Sigma catalogue and sigmaitalia.com.
