Which Sigma tile cutter should you choose? Comparison guide (Series 4 Nex, Series 4 Up, Tecnica)

In short: to choose a Sigma tile cutter, start from the longest cut you will make. For a straight cut, the tool's cutting length must exceed the tile side. For a diagonal cut, the diagonal capacity is what counts. Then check the maximum thickness and the scoring system (push or pull). For 60 × 120 cm (24 × 48 in) porcelain tiles, you need at least the Series 4 Nex 125 cm (4EN). For 30 × 60 cm (12 × 24 in), a Series 4 Nex 76 cm (4CN) or a Series 4 Up 84 cm (4CU) is enough. For small formats and finishing work, the Tecnica 37 cm (2G) is the light, fast option.

This guide compares the Sigma tile cutters we stock, using the specifications the manufacturer publishes in its official catalogue.

The 4 criteria that decide the right model

1. Cutting length. The maximum length of a straight cut. It should be a little longer than the longest tile side you will cut.
2. Diagonal capacity. The longest possible diagonal cut. A 60 × 60 cm tile has an 84.9 cm diagonal; a 30 × 30 cm tile, 42.4 cm.
3. Maximum thickness. Up to 19 mm (3/4 in) for the Series 4 Nex and Tecnica 2B3, and 17 mm (11/16 in) for the Series 4 Up.
4. Push or pull scoring. According to Sigma, push scoring gives maximum scoring power and pull scoring is practical and fast. Our advice: pulling is also handier when there is no room to push. We explain the difference in "Push or pull tile cutter".

Sigma manual tile cutter comparison table

Values from the official Sigma catalogue. Breaking force is the maximum force applied by the breaker foot.

Which model for which tile size?

The cutters in this table cut up to 19 mm. For 20 mm slabs, such as outdoor pavers, Sigma states that some tiles can only be cut if their hardness allows it, and recommends test cuts before purchase. The Rubi TZ scores up to 21 mm depending on density. Beyond that, or if the test fails, you need a diamond blade cut with a wet saw, for example the Rubi DC-250 Python 1200 (up to 90 mm deep, 121 cm cutting length) or, more affordable, the Rubi DT-10" MAX.

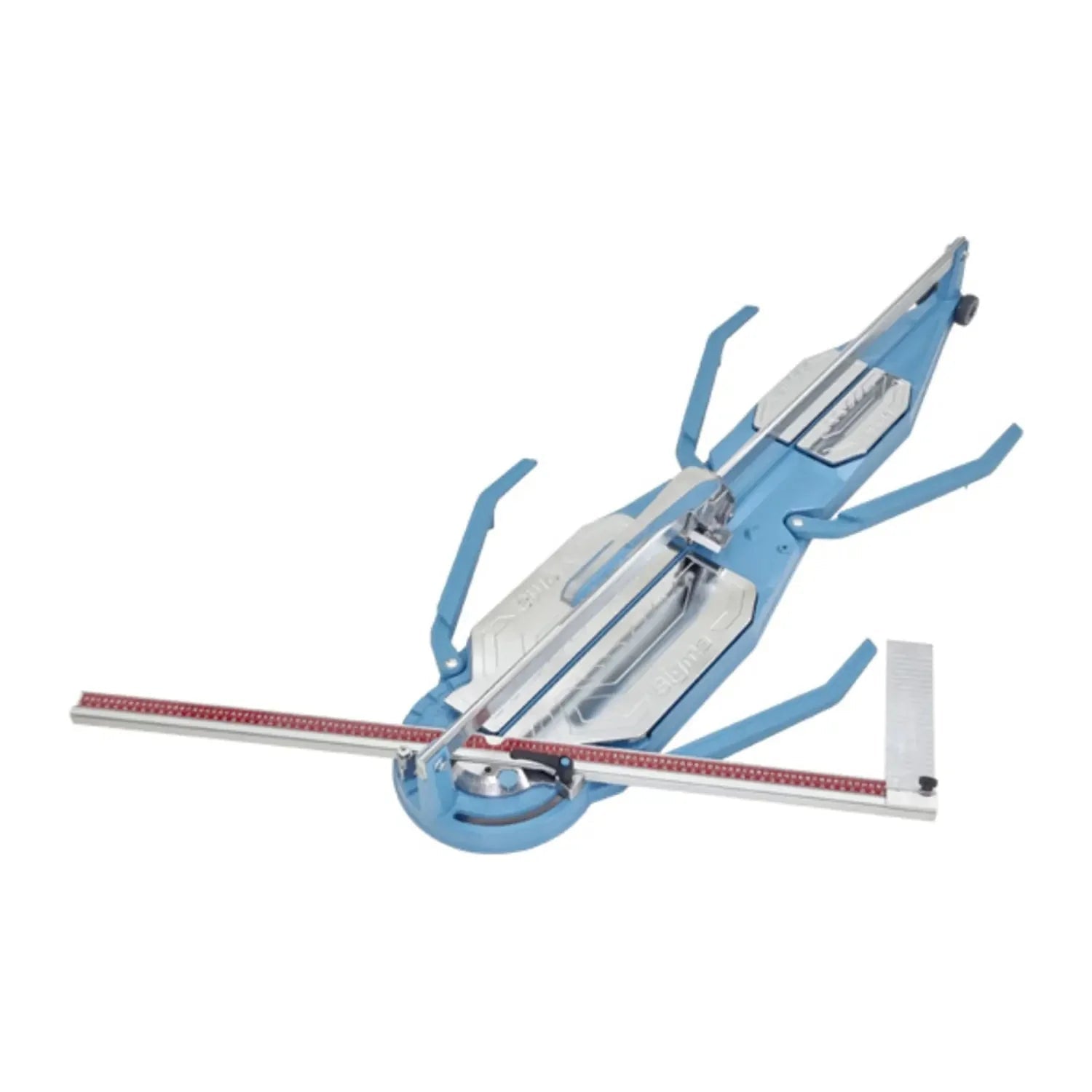

Series 4 Nex: for porcelain and large formats

The Series 4 Nex is by far our best-selling Sigma cutter. It scores by pushing, with a 16 mm wheel. Its 120 mm wide breaker foot applies up to 1,200 kg. According to Sigma, the carriage runs on 3 double-row ball bearings and does not wear. A double suspension cushions the score on textured tiles. The measuring bar pivots from +45° to −45° on a steel pin at the centre of the cutting line, and the diagonal measuring system is patented.

The Series 4 is ready for the 022V positioning laser kit, which projects the cutting line onto the tile. The 64B2 magnetic mat (337 × 486 mm) also lets you cut mosaic on it.

Series 4 Up: pull scoring with Series 4 rigidity

The Series 4 Up shares the Series 4 frame, cast in a single piece of aluminium. It scores by pulling, though, with a 12 mm wheel that stays visible at all times. Its 100 mm breaker foot applies 1,050 kg on tiles up to 17 mm. It is the right choice if you prefer pulling the handle towards you. In our view, it is also handier where there is no room to push. The 022V laser kit and the 64B2 mat fit it.

Tecnica and Standard: light and fast for small and medium formats

Sigma describes its Standard series as the ideal partner for fast work on small and medium tiles, 100% made in Italy. The Tecnica 2G (2.6 kg) and the Standard 7F (2.3 kg) cut 37 cm with 600 kg of breaking force. The Tecnica 2B3 goes up to 66 cm, 19 mm thickness and 800 kg. All three score by pulling with the 14A 12 mm wheel.

Buy Sigma at Ceramed

Ceramed is a proudly Québec company based in Saint-Mathieu-de-Beloeil. It distributes a wide selection of Sigma products: tile cutters, spare parts and accessories. We ship across Canada and offer more than 90 free pickup locations. Contractors and building professionals get special pricing with Ceramed Pro.

Sources: official Sigma catalogue (technical specifications), sigmaitalia.com and rubi.com. Usage advice is from the Ceramed team.
