SKU: KL1V60E170 Distributor SKU: KL1V60E170

66-7/8" - Schluter KERDI-LINE Linear Drain Centered Channel Kit

Sale price: $629.66

Regular price

$699.63
Regular price: $699.63
You save: $69.97 (10%)

Taxes and shipping calculated at checkout

Quantity

80 in stock across our Canadian locations — available for shipping or pickup

Check availability by warehouse

Up to 60%

Construction or renovation professional?

Save up to 60% with Ceramed PRO.

For orders over $3,000, delivery is free for installation products.

Some conditions apply — please check your eligibility.

Pickup available

Frequently Bought Together

Brushed Stainless Steel (V4) 1-1/8" x 66-7/8" - Schluter KERDI-LINE Recessed Linear Drain with Frameless Tileable Grate Design

Price: $316.09

Schluter KERDI-LINE Recessed Linear Drain with Solid Grate Design - Brushed Stainless Steel (V4) 3/4" x 66-7/8"

Price: $696.39

Schluter KERDI-LINE Recessed Linear Drain with Solid Grate Design Stainless Steel (V4) Matte Black 3/4" x 66-7/8"

Price: $777.22

Product Information

Description

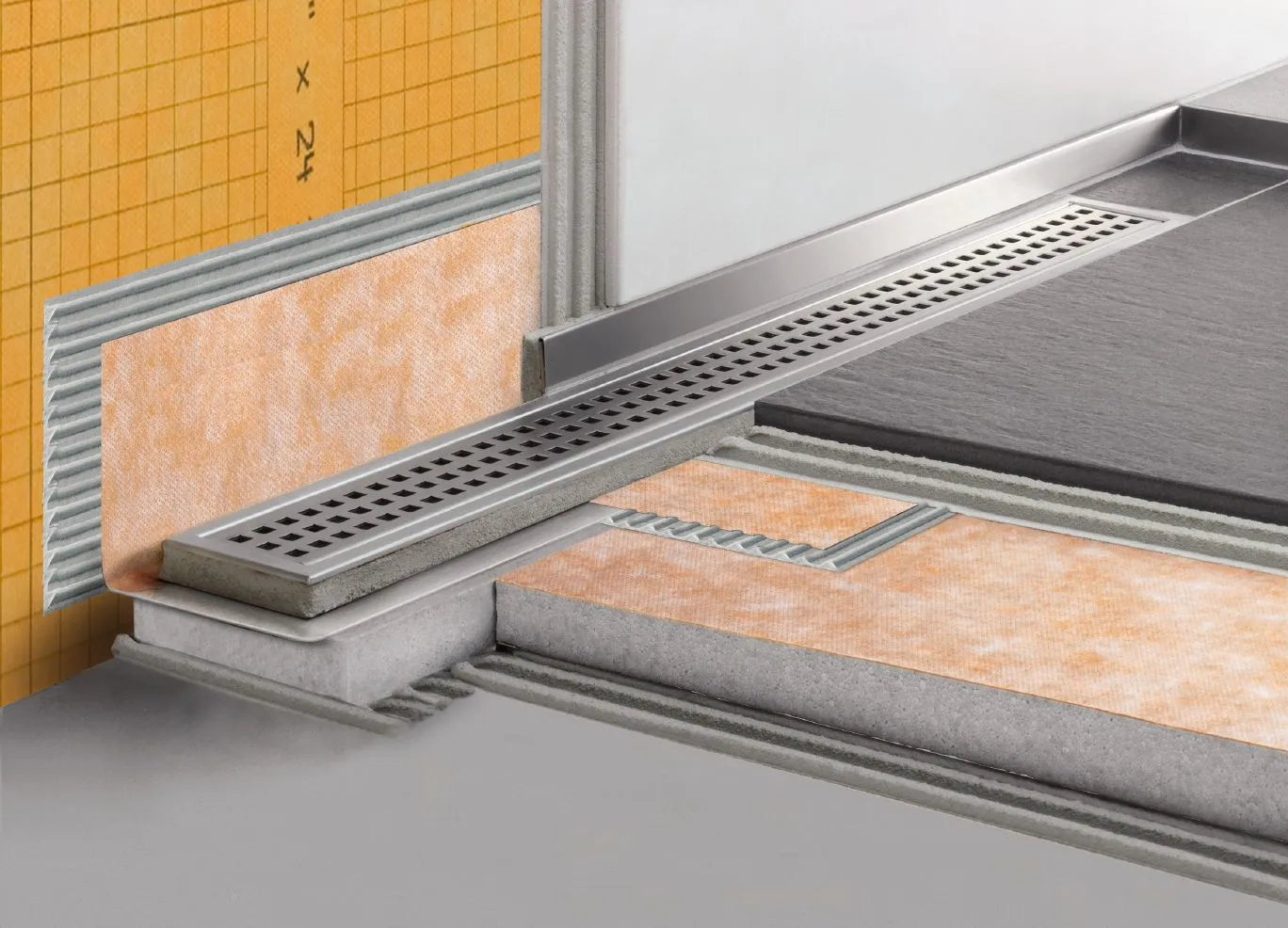

Schluter-KERDI-LINE is a recessed linear drain designed for integration into bonded waterproof assemblies. It can be installed along a wall or centered in a shower, steam shower, wet room, or any other location requiring a waterproof installation and drainage.

This kit includes: 1 KERDI-LINE channel body with KERDI bonding flange, 1 channel support, 1 mechanical connector, KERDI-KERECK preformed sealing corners (4 internal and 2 external), 1 KERDI-SEAL-PS 3/4" pipe sleeve, and 1 KERDI-SEAL-MV 4-1/2" valve sleeve.
Remember that you must also select the KERDI-LINE grate separately.
For creating open spaces.
The floor can have a single slope converging towards KERDI-LINE, which allows for the use of large-format tiles.

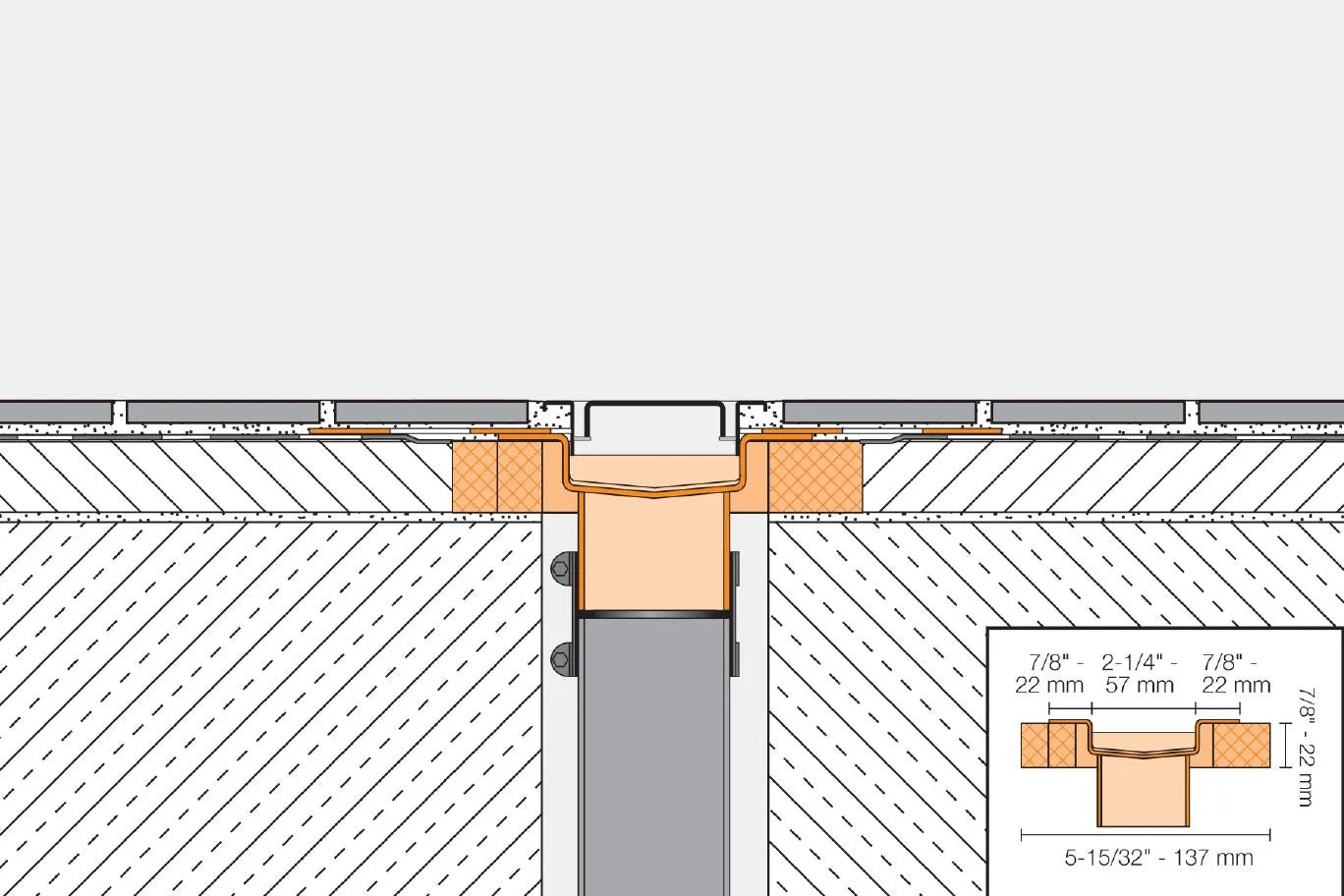

The channel body KERDI-LINE is made of stainless steel and features a KERDI bonding flange, which ensures an effective, waterproof connection.
Fits ceramic and natural stone tiles of all common thicknesses.

Specifications

Manufacturer	Schluter
Product type	Shower drain Linear
Shower Approved	Yes
Warranty	Shower System and Floor Drains - 10-Year Limited Warranty years
Warranty (years)	10
Height (mm)	120
Height (in.)	0.3864
Height (inch in fraction)	25/64
Width (mm)	255
Width (in.)	66.88
Width (inch in fraction)	66-7/8
Length (mm)	1981
Length (in.)	66.88
Length (inch in fraction)	66-7/8
Material	Stainless steel (V4)
Collection name	KERDI-LINE
Weight (lb)	11.44
Water resistance	Yes
Shower drain type	Linear Drain
Indoor use	Yes
Use for	Stone and Ceramics

Product Specs

Product line KERDI-LINE

data-mce-fragment="1"> Manufacturer Schluter

data-mce-fragment="1"> Product type Shower drain Linear

data-mce-fragment="1"> Shower Approved Yes

data-mce-fragment="1"> Warranty Shower System and Floor Drains - 10-Year Limited Warranty years

data-mce-fragment="1"> Warranty (years) 10

data-mce-fragment="1"> Height (mm) 120

data-mce-fragment="1"> Height (in.) 0.3864

data-mce-fragment="1"> Height (inch in fraction) 25/64

data-mce-fragment="1"> Width (mm) 255

data-mce-fragment="1"> Width (in.) 66.88

data-mce-fragment="1"> Width (inch in fraction) 66-7/8

data-mce-fragment="1"> Length (mm) 1981

data-mce-fragment="1"> Length (in.) 66.88

data-mce-fragment="1"> Length (inch in fraction) 66-7/8

data-mce-fragment="1"> Material Stainless steel (V4)

data-mce-fragment="1"> Collection name KERDI-LINE

data-mce-fragment="1"> Weight (lb) 11.44

data-mce-fragment="1"> Water resistance Yes

data-mce-fragment="1"> Shower drain type Linear Drain

data-mce-fragment="1"> Indoor use Yes

data-mce-fragment="1"> Use for Stone and Ceramics

Documentation

Information Document - EN

Sales Sheet - EN

Sales Sheet - FR

Technical Data Sheet - EN

Technical Data Sheet - FR

User Guide - EN

User Guide - FR

Warranty Document - EN

Warranty Document - FR
