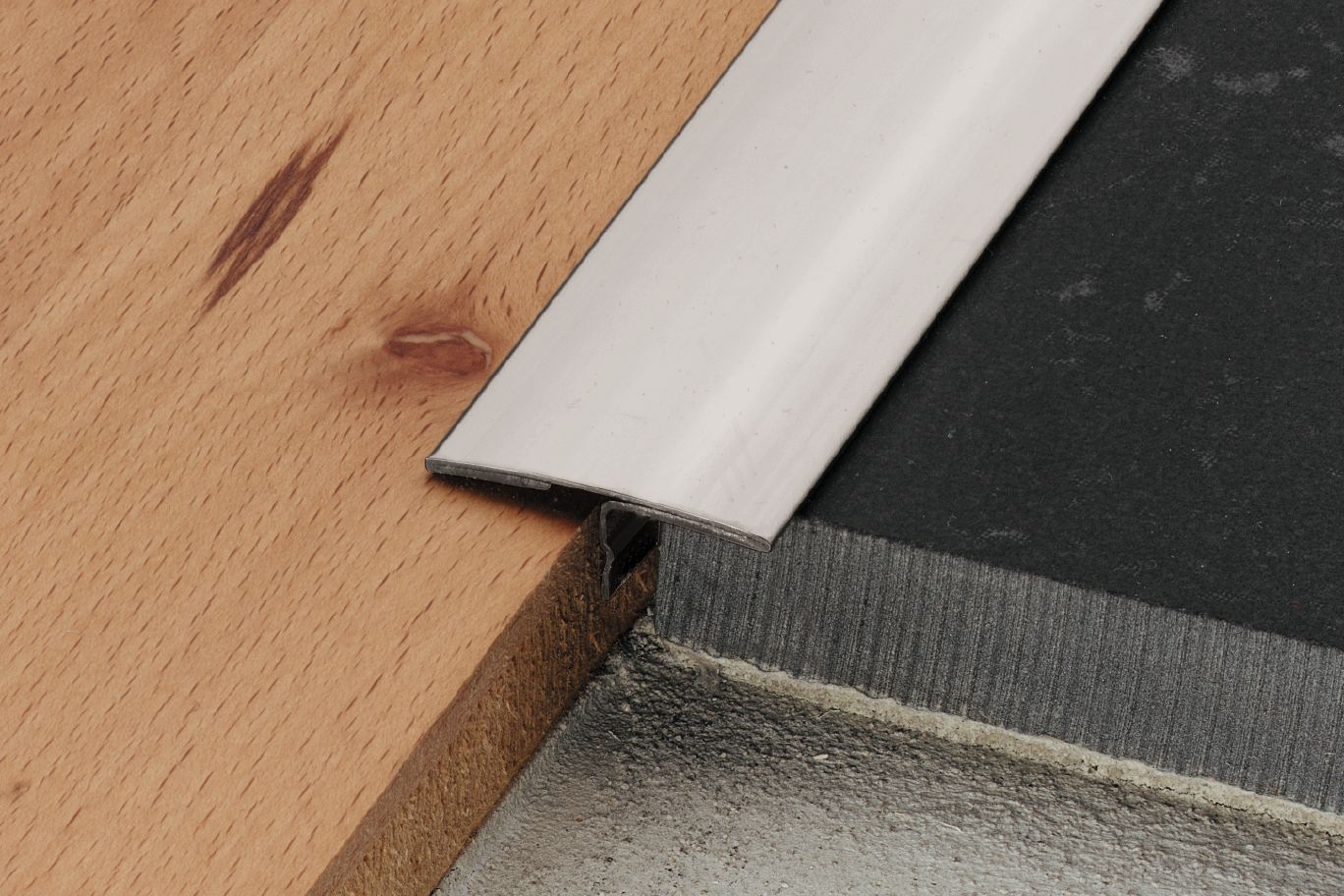

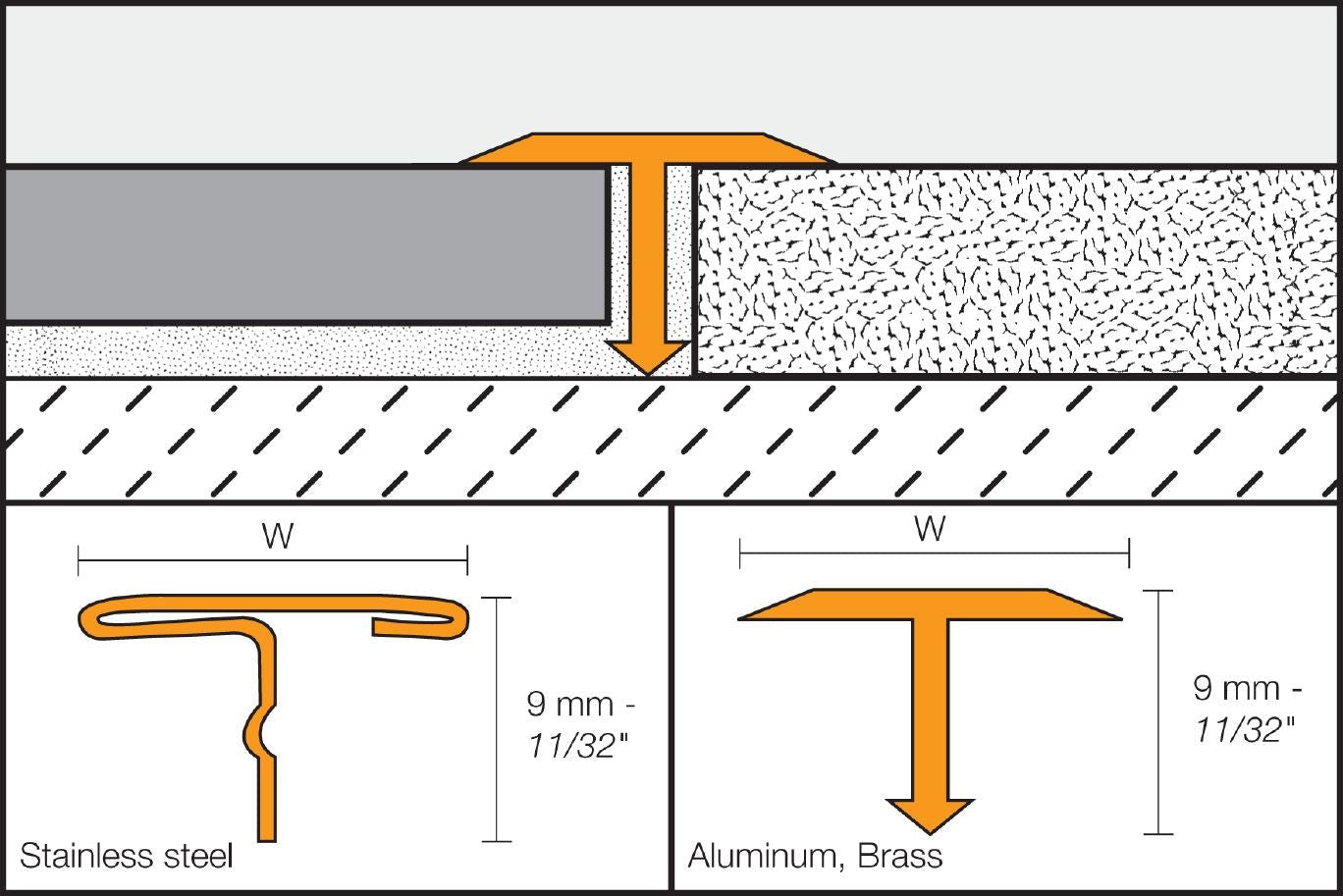

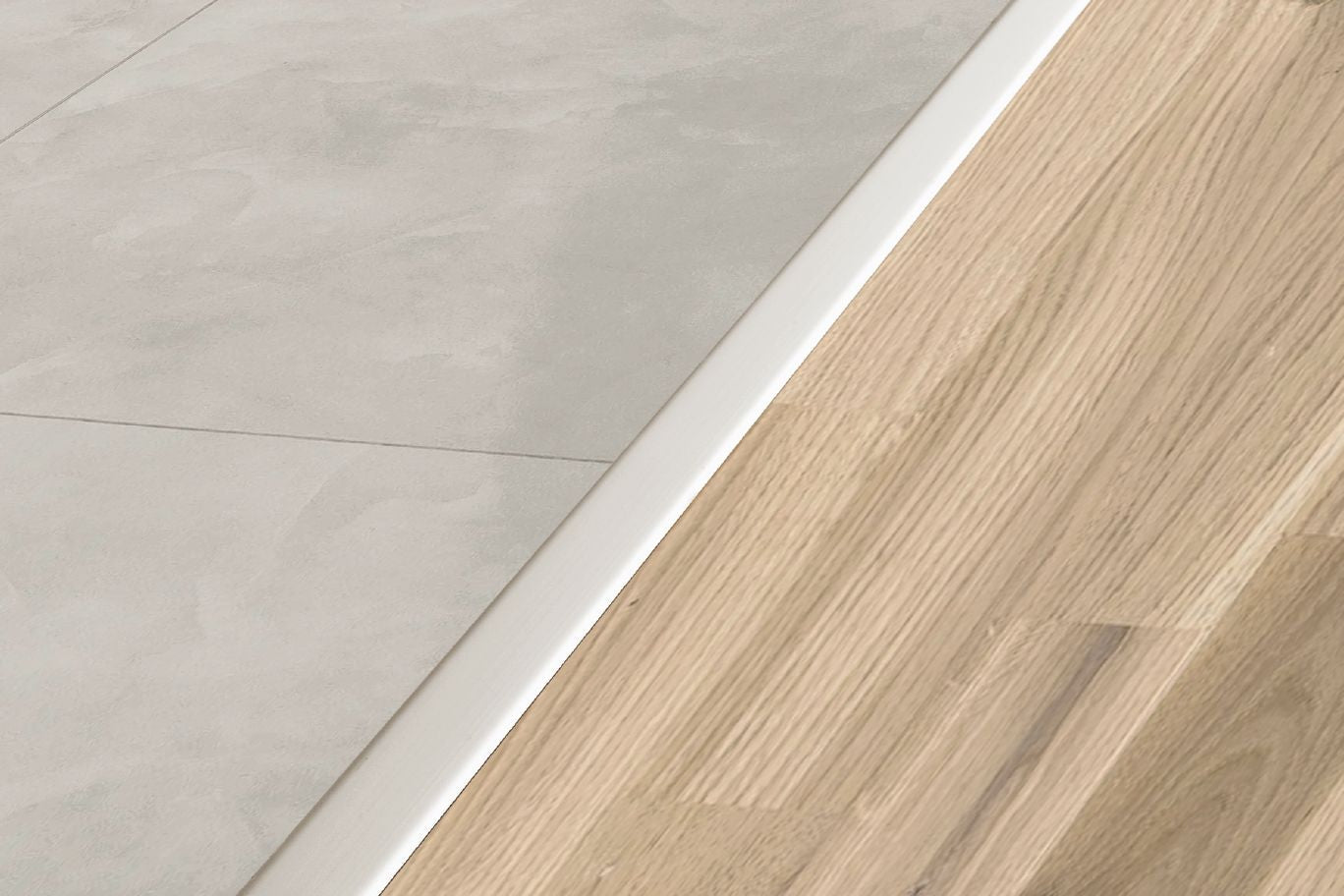

Schluter-RENO-T is designed to provide transitions between existing floor coverings of the same height and with a hard surface (for example, ceramic tile or natural stone, parquet, concrete pavers, laminates, etc. The profile is available in stainless steel, solid brass and anodized aluminum. RENO-T is installed in the cavity of the existing joint and covers the adjacent surface materials, thereby preventing the edges from being damaged when subjected to mechanical stress. RENO-T, in brass and anodized aluminum in size 9/14, is laterally flexible and can be used in curved applications.
Prevents tile edges from chipping
Ideal for installations where the tile is bordered by wood, laminate or other hard floor coverings
Designed for floor transitions in renovation applications
In certain materials and sizes, the profile is flexible and can be used to form curves
Available in stainless steel, solid brass and anodized aluminum
Specifications
Manufacturer
Schluter
Application
Renovation
Color
Gray
Manufacturer color
Aluminum
Finish
Matte
Warranty
5-year limited warranty on floor profiles
Warranty (years)
5
Height (cm)
0.9
Height (mm)
9
Height (in.)
0.34
Height (inch as fraction)
11/32
Width (cm)
1.4
Width (mm)
14
Width (in.)
0.53
Width (inch as fraction)
17/32
Width of the exposed surface of the trim (mm)
14
Width of the exposed surface of the trim (in.)
0.53
Width of the exposed surface of the trim (inch as fraction)
17/32
Length (cm)
250
Length (m)
2.5
Length (mm)
2500
Length (ft)
8.21
Length (in.)
98.5
Length (inch as fraction)
98-1/2
Material
Anodized aluminum
Collection name
RENO-T
Color number
AE
Weight (kg)
0.17
Weight (lb)
0.38
Trim transition type
Transitions between existing hard floor coverings of the same height (for example, ceramic tile or natural stone, parquet, concrete pavers, floating floors, etc.)
Outdoor use
No
Indoor use
Yes
Use for
Can be used in curved applications | Prevents tile edges from chipping
Use on
Floor | Installations where the tile is bordered by wood, laminate or other hard floor coverings
Floor thickness for the trim (mm)
14
Product Specs
Product lineRENO-T
ManufacturerSchluter
ApplicationRenovation
ColorGray
Manufacturer colorAluminum
FinishMatte
Warranty5-year limited warranty on floor profiles
Warranty (years)5
Height (cm)0.9
Height (mm)9
Height (in.)0.34
Height (inch as fraction)11/32
Width (cm)1.4
Width (mm)14
Width (in.)0.53
Width (inch as fraction)17/32
Width of the exposed surface of the trim (mm)14
Width of the exposed surface of the trim (in.)0.53
Width of the exposed surface of the trim (inch as fraction)17/32
Length (cm)250
Length (m)2.5
Length (mm)2500
Length (ft)8.21
Length (in.)98.5
Length (inch as fraction)98-1/2
MaterialAnodized aluminum
Collection nameRENO-T
Color numberAE
Weight (kg)0.17
Weight (lb)0.38
Trim transition typeTransitions between existing hard floor coverings of the same height (for example, ceramic tile or natural stone, parquet, concrete pavers, floating floors, etc.)
Outdoor useNo
Indoor useYes
Use forCan be used in curved applications | Prevents tile edges from chipping
Use onFloor | Installations where the tile is bordered by wood, laminate or other hard floor coverings
